Heavy-Metal Safety Baseline • Medical SUS316 Alloy • 2.0ml High Capacity

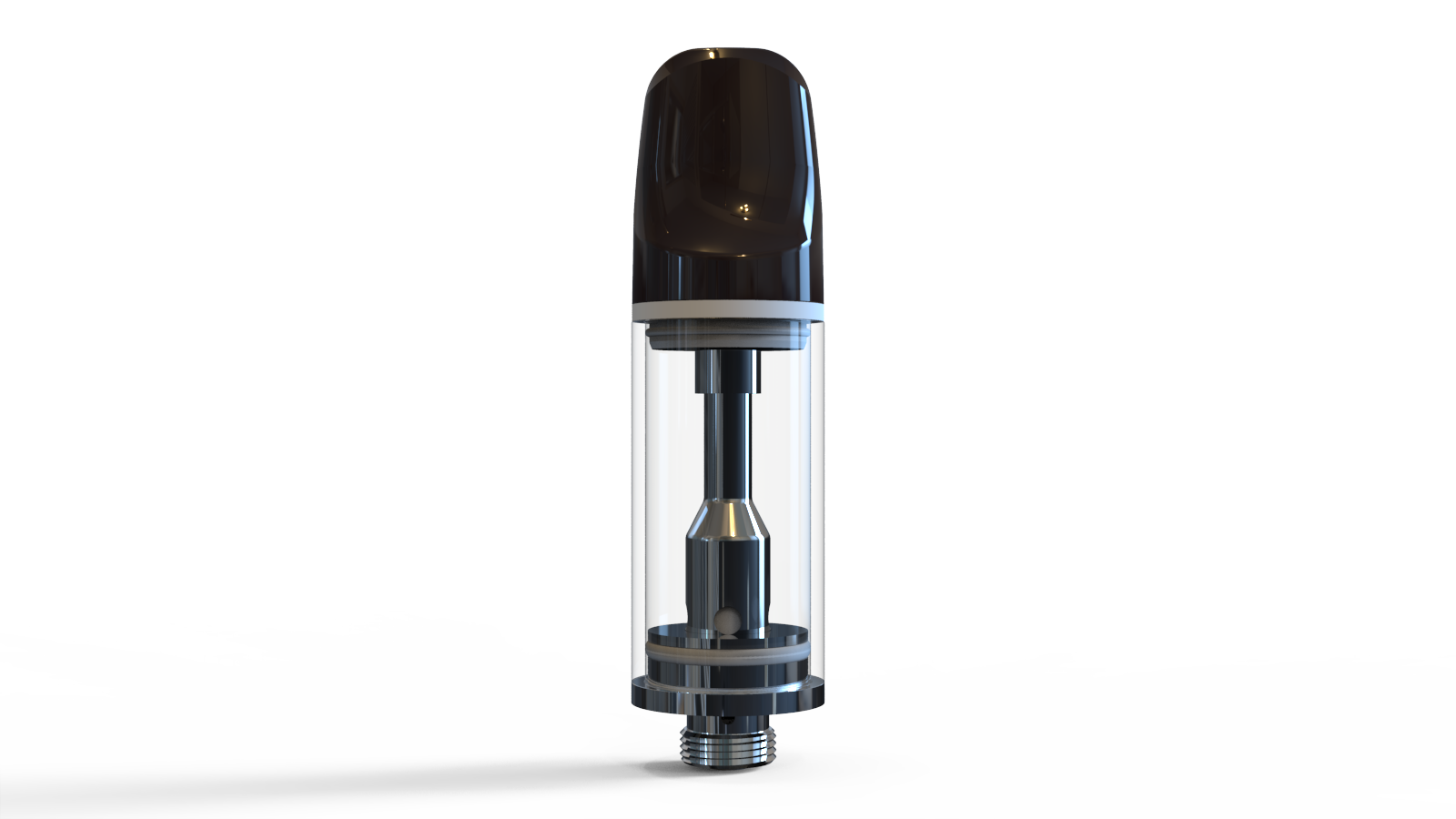

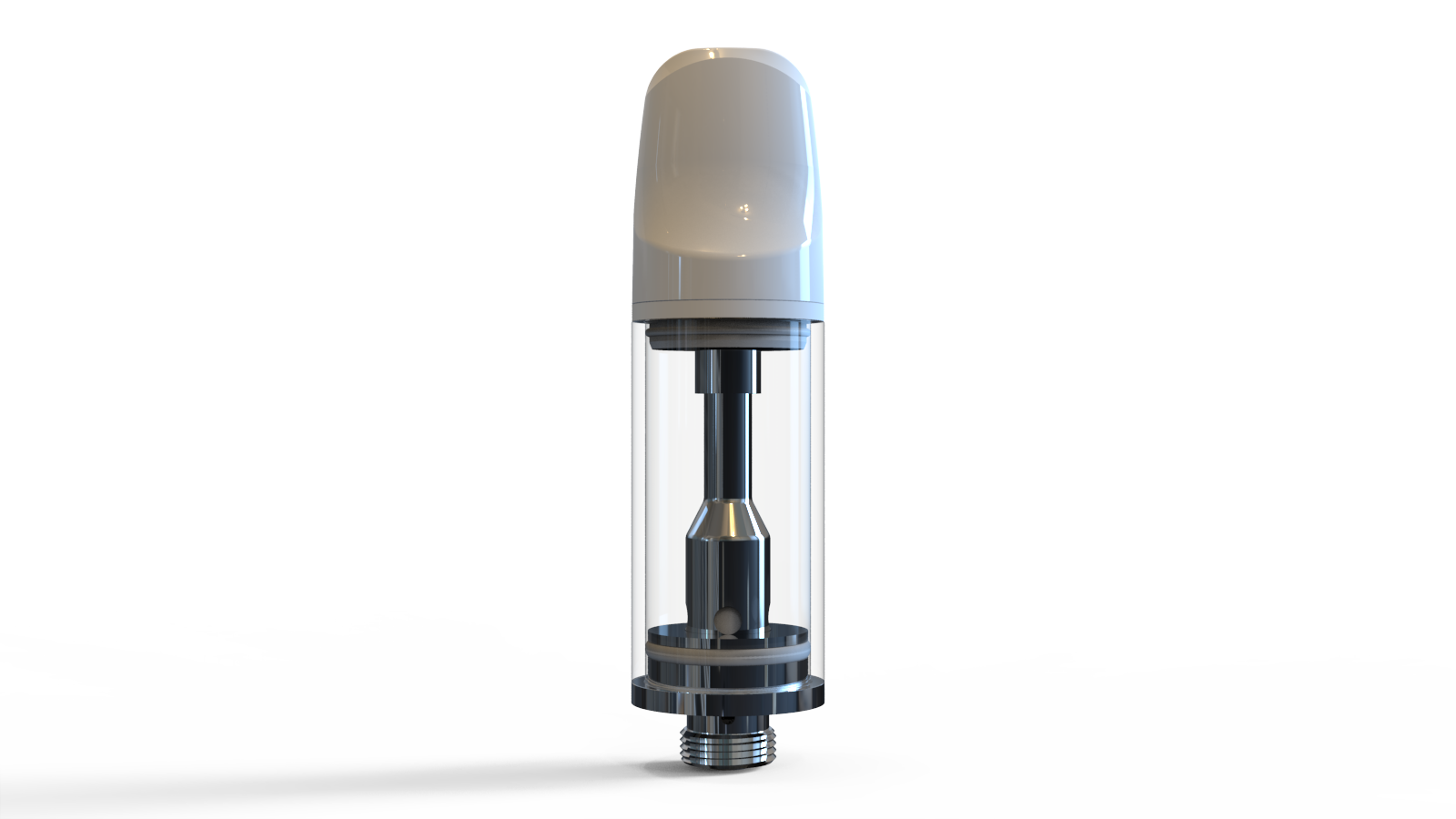

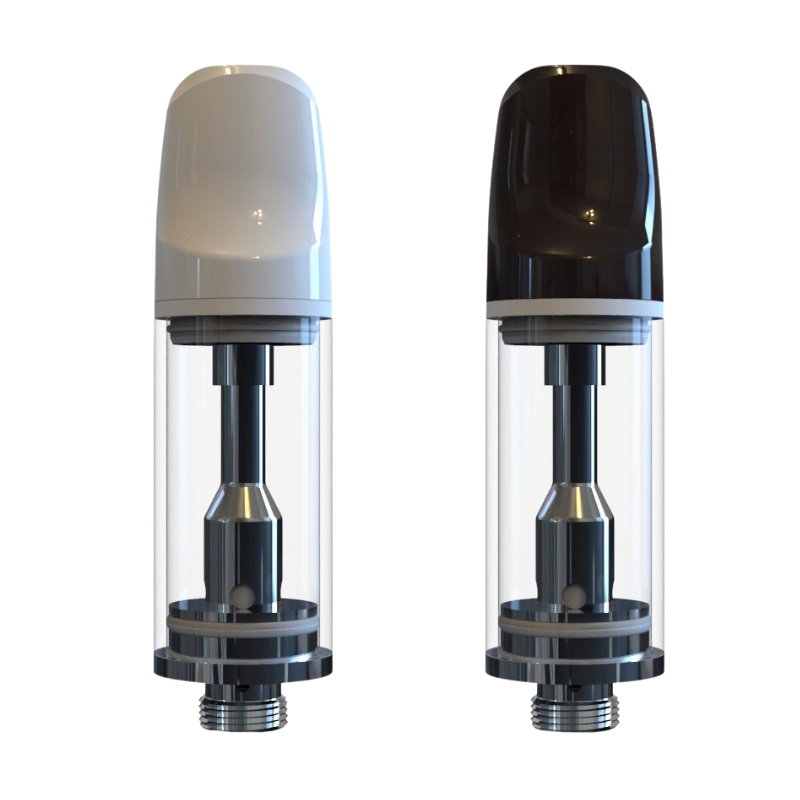

Sampson S6-K3 Heavy-Duty SUS316 510 Cartridge (2.0ml)
Engineered for large-volume live resin, rosin, and liquid diamond extracts. Built with surgical SUS316 stainless steel and a permanent press-on ceramic mouthpiece, supported by third-party lab testing.
Heavy-Metal Safe
Third-Party Lab Ready
Scale into 2.0ml Capacity: Eliminate Leaching Risks, Wicking Scorches, and Top-Cap Leaks
In the high-stakes botanical extract market, scaling up to 2.0ml cartridges offers higher dispensary margins, but traditional hardware carries major technical pitfalls: brass center post corrosion under terpene acidity, heavy-metal leaching concerns, wicking dry hits on viscous oils, and loose screw caps leaking during distribution.
The Sampson S6-K3 addresses these commercial challenges through robust material engineering. Built with a surgical SUS316 stainless steel center post and lead-free copper base components, it adheres strictly to a heavy-metal safety design baseline. Features quad 2.0mm CNC oil apertures and a 1.2Ω porous ceramic core for rapid saturation without scorching. Completed with a one-way tamper-evident press-on ceramic tip, the S6-K3 maximizes arbor-press capping efficiency on automated filling lines. Sampson actively assists clients by coordinating and submitting production hardware for accredited third-party laboratory testing according to your specific state and market regulations.
Surgical SUS316 Center Post
Non-corrosive medical stainless steel core protects against chemical reactions with terpenes, adhering strictly to heavy-metal safety baselines.
Quad 2.0mm Rapid Saturation
Four oversized intake ports guarantee instantaneous wick feeding for live resin, rosin, and high-terpene fractions without pre-heating delays.
Permanent Press-On Ceramic Tip
Snap-in ceramic mouthpiece prevents consumer tampering and creates a hermetic seal optimized for high-speed automated arbor-press filling lines.
Engineering Specifications & Benchmarking
Review how the Sampson S6-K3 hardware matches and exceeds tier-1 OEM benchmarks across critical parameters:
| Parameter / Metric | Sampson S6-K3 (Factory Spec) | Generic 510 Cartridges |
|---|---|---|
| Central Post Material | Medical-Grade SUS316 Stainless Steel | Standard Brass or Low-Grade Alloy |
| Heavy-Metal Safety Design | Strict baseline standard; inert SUS316 & clean vapor path | High leaching risk from acidic terpene corrosion |
| Third-Party Lab Verification | Full factory support to submit samples for client testing | Opaque sourcing without testing cooperation |
| Mouthpiece Architecture | Press-On Ceramic (Tamper-Proof Snap Fit) | Screw-on or Plastic Snap Tips |
| Reservoir Capacity & Profile | 2.0ml High Capacity (Ø14mm Profile) | 0.5ml / 1.0ml Standard Only |
| Heating Core & Resistance | Embedded Porous Ceramic Matrix (1.2Ω ± 0.1Ω) | Unstable Standard Wire/Ceramic Coils |
| Oil Intake Apertures | 4 × 2.0 mm Large Inlet Ports (CNC Machined) | 2 or 4 × 1.2–1.6mm (High clog risk) |
| Reservoir Glass Housing | High-Borosilicate Tempered Glass (Inert) | Standard Commercial Glass or Acrylic |
| Base Threading | Lead-Free Copper 510 Thread | Commercial Leaded Free-Cutting Brass |
| Factory Defect Benchmark | Factory pre-shipping QA aimed at < 0.3% | 1.5% – 3.0% Industry Average |
Multi-Stage Quality Protocol: Built for Zero-Defect Filling Lines
Every production batch of S6-K3 cartridges undergoes structured laboratory verification at our Shenzhen facility before export dispatch. Learn more about our complete
Quality Testing Protocols.
Heavy-Metal Baseline & Materials Audit
Incoming raw heats of SUS316 steel and lead-free copper base components undergo material assays. We proactively assist and coordinate sending production samples to accredited third-party labs on demand.
Resistance Calibration Jig
100% individual testing across automated jigs ensures each 1.2Ω ceramic core falls within tight ±0.05Ω tolerance bands for uniform heating.
-80kPa Flight Vacuum Simulation
Dual negative-pressure vacuum chambers stress-test assembled glass and silicone seals to prevent leakage during altitude and commercial air transit shifts.
Fitment & Capping Validation
Batch-tested on automated arbor press equipment to verify press-fit tolerances, ensuring continuous high-speed production on commercial filling lines.
Factory-Direct Global Supply & Fast-Track Logistics
Sampson empowers licensed brands, MSOs, and bulk distributors with turnkey hardware customization and expedited fulfillment:
- Immediate Evaluation Samples: Unbranded stock units dispatch within 24–48 hours via DHL, FedEx, or UPS Priority Air.
- Custom Finishes & Laser Etching: Bespoke ceramic mouthpiece colors (Black, White, Custom Pantone) and laser-etched logos available from low MOQs. Explore our
OEM/ODM Customization Services. - Full Packaging Compatibility: Pair your hardware seamlessly with child-resistant master boxes via our
Vape Cartridge Packaging Solutions. - Direct Logistics: Reliable door-to-door customs coordination and express delivery directly to North American and European distribution hubs.
Secure Your S6-K3 Verification Samples Today
Eliminate production risks before committing to bulk manufacturing. Test our SUS316 medical-grade hardware with your densest formulations. Contact our engineering team for instant technical sheets and wholesale sample kits.
