Description
Heavy-Metal Safety Baseline • Solid Glazed Ceramic • Pure Terpene Delivery

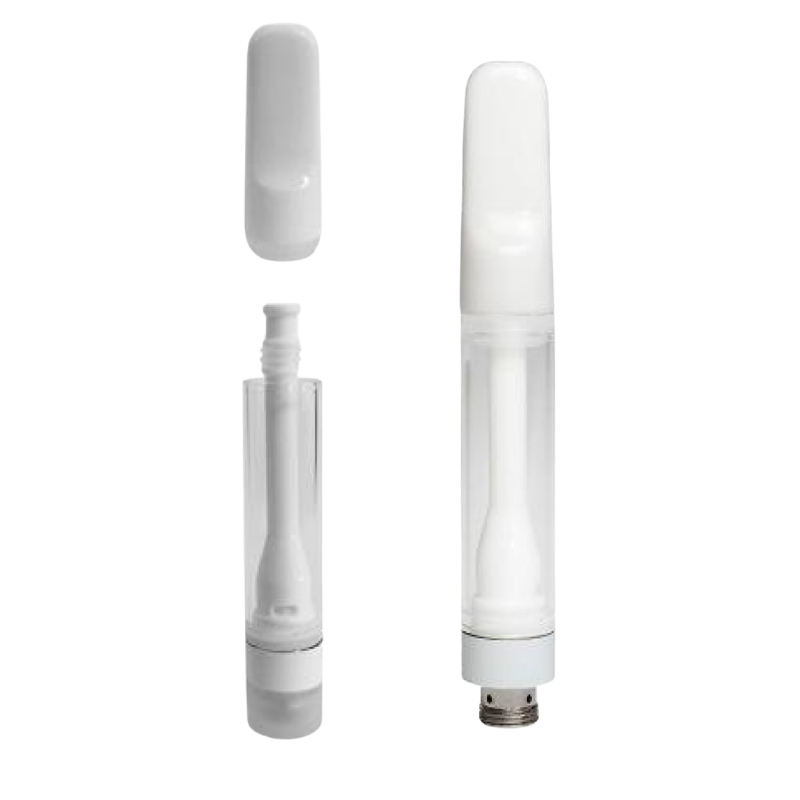

Sampson GCELL Flagship Full Ceramic 510 Cartridge (0.5ml / 1.0ml)
Engineered specifically for premium live rosin, live resin, and liquid diamonds. Eliminates internal metal chimneys entirely, pairing solid ceramic atomization with heavy-metal safety design and full third-party testing support.
Heavy-Metal Safe
Third-Party Lab Ready
Why Premium Concentrates Demand Solid Full Ceramic Engineering
For extractors and brand owners processing solventless live rosin and high-terpene liquid diamonds, hardware failure is the single largest threat to operating margins. Metallic center posts—even when coated—can chemically react with acidic botanical terpenes during storage, risking heavy-metal leaching concerns and imparting an astringent metallic taint to delicate terpene notes.
The Sampson GCELL eliminates these liabilities through material purity. By replacing metallic chimneys with a solid biocompatible ceramic central post, your valuable extract contacts only high-borosilicate glass and medical-grade ceramic. Built on a strict heavy-metal safety design baseline, the GCELL features precision-tuned 1.4Ω heating resistance and 4 × 1.8mm CNC intake apertures, providing smooth capillary wicking and low-temperature atomization that protects terpene integrity from the first pull to the last drop. Sampson actively assists clients by coordinating and submitting production hardware for accredited third-party laboratory testing to align with your regional and state regulatory requirements.
Solid Ceramic Chimney
Non-reactive glazed ceramic central airway eliminates metallic contact inside the oil reservoir, adhering to strict heavy-metal safety design baselines.
1.4Ω Low-Temp Terpene Core
Calibrated 1.4Ω resistance operates at gentle vaporization temperatures, preventing degradation of delicate monoterpenes and eliminating burnt hits.
Standard Ø10.5mm Slim Profile
Unlike oversized ceramic carts (Ø11.5mm), the GCELL fits smoothly into universal drop-in conceal 510 batteries without mechanical binding.
Engineering Specifications & Technical Benchmarking
Review how the Sampson GCELL full ceramic platform compares directly against standard metallic 510 cartridges:
| Parameter / Engineering Metric | Sampson GCELL Full Ceramic | Standard Metallic 510 Cartridge |
|---|---|---|
| Central Post & Chimney | Solid Medical-Grade Glazed Ceramic | Electroplated Brass or Standard Steel |
| Heavy-Metal Safety Design | Strict baseline standard; completely metal-free oil zone | High leaching risk from acidic terpene corrosion |
| Third-Party Lab Verification | Full factory support to submit samples for client testing | Opaque sourcing without testing cooperation |
| Mouthpiece Architecture | Press-on Ceramic (Permanent Snap Tamper-Proof) | Plastic Screw or Basic Metal Tip |
| Heating Coil Resistance | 1.4Ω (±0.1Ω) Low-Temp Terpene Calibrated | 1.2Ω – 1.6Ω Erratic Resistance Wire |
| Oil Intake Apertures | 4 × 1.8 mm (CNC High-Precision Ports) | 2 × 1.2 mm or 4 × 1.5 mm (Prone to flooding) |
| Volumetric Capacity | 0.5ml / 1.0ml Calibrated Reservoir | Inconsistent Volumetric Linearity |
| Reservoir Tank Material | High Borosilicate Heat-Resistant Glass | Standard Commercial Glass |
| Outer Diameter & Weight | Ø10.5 mm Standard Slim Fit | 11.0g Net Weight | Ø11.5 mm (Jams in conceal drop-in batteries) |
| Factory Defect Rate | Factory pre-shipping QA aimed at < 0.3% | 1.5% – 3.0% Industry Average |
4-Stage Laboratory QA Protocol for Full Ceramic Hardware
Because full ceramic hardware demands micron-level mechanical tolerances, every production batch of GCELL undergoes structured verification before export. Review our complete
Quality Testing Protocols.
Heavy-Metal Baseline & Materials Audit
Ceramic raw materials and high-borosilicate glass tubes undergo strict purity assays. We proactively assist and coordinate sending production samples to accredited third-party labs on demand.
Automated 1.4Ω Resistance Calibration
100% automated inline checks ensure every ceramic heating element operates precisely within 1.4Ω ± 0.1Ω for smooth, unburned vapor delivery.
-80kPa Vacuum Flight Simulation
Filled cartridges undergo negative pressure chamber testing to guarantee hermetic internal sealing during high-altitude commercial air shipments.
Snap-Fit Mechanical Stress Test
Press-on ceramic mouthpieces are tested with digital force gauges to ensure permanent tamper-proof retention without micro-fracturing the ceramic.
Scalable B2B Supply & OEM Capabilities
Sampson empowers multi-state operators, wholesale distributors, and craft concentrate brands with direct factory manufacturing:
- Immediate Evaluation Samples: Standard white GCELL hardware samples dispatch within 24–48 hours via DHL, FedEx, or UPS Priority Air.
- Full Battery Interoperability: Precision Ø10.5mm outer profile ensures flawless pairing with our
510 Vape Batteries and universal drop-in conceal devices. - Custom Packaging Integration: Streamline production with our compliant child-resistant boxes and master packaging via
Vape Cartridge Packaging Solutions. - Direct Factory Pricing: Eliminate middleman markups by sourcing genuine high-performance ceramic hardware directly from our Shenzhen production facility.
Direct Factory Procurement: Maximize Terpene Integrity
Protect your extracts from heavy metal leaching concerns and burnt flavors. Contact our engineering and sales desk directly for wholesale tiered pricing, arbor-press capping specifications, and sample evaluation kits.
