Description
Heavy-Metal Safety Baseline • Medical SUS316 Post • High-Flow Intake

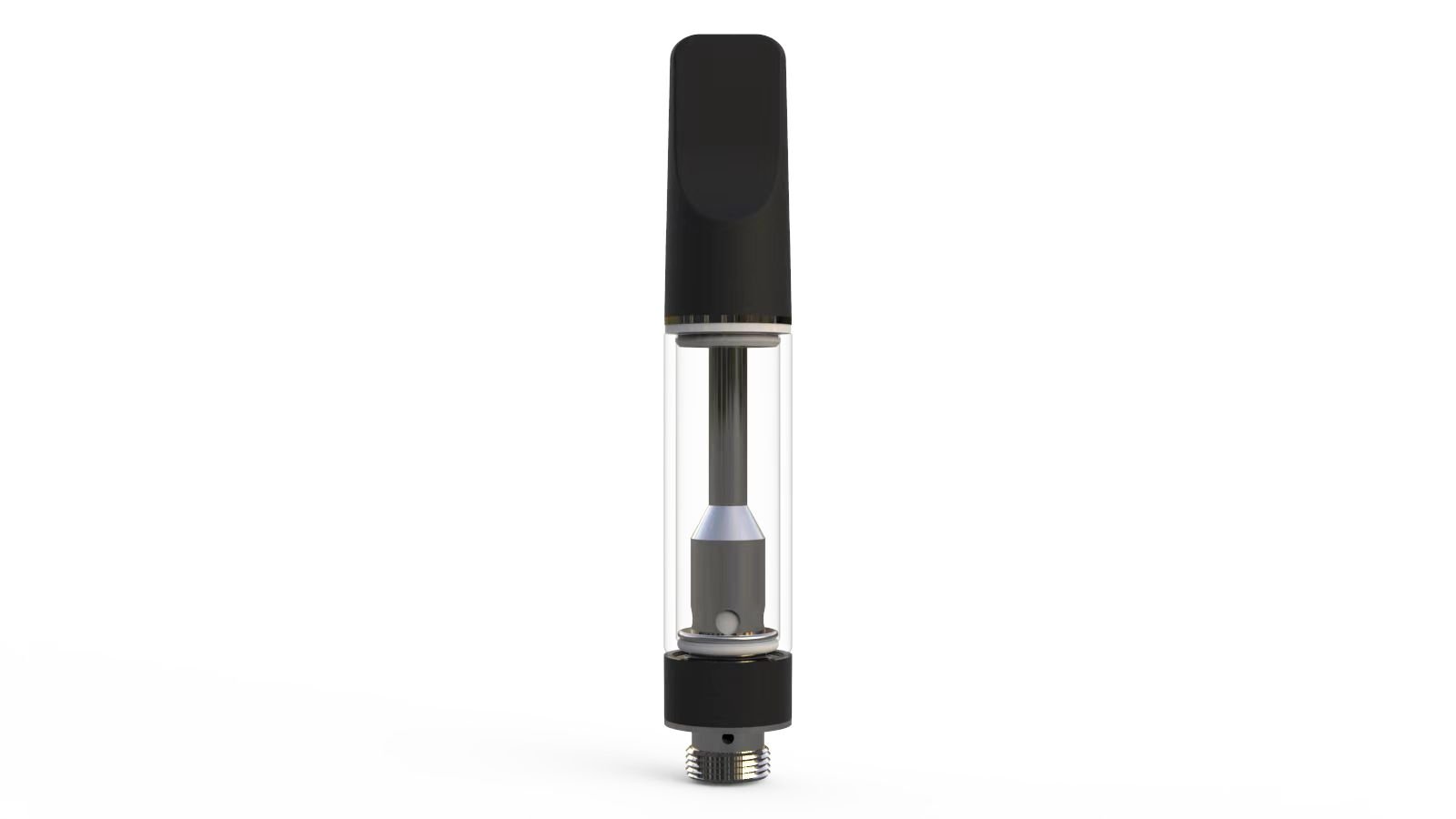

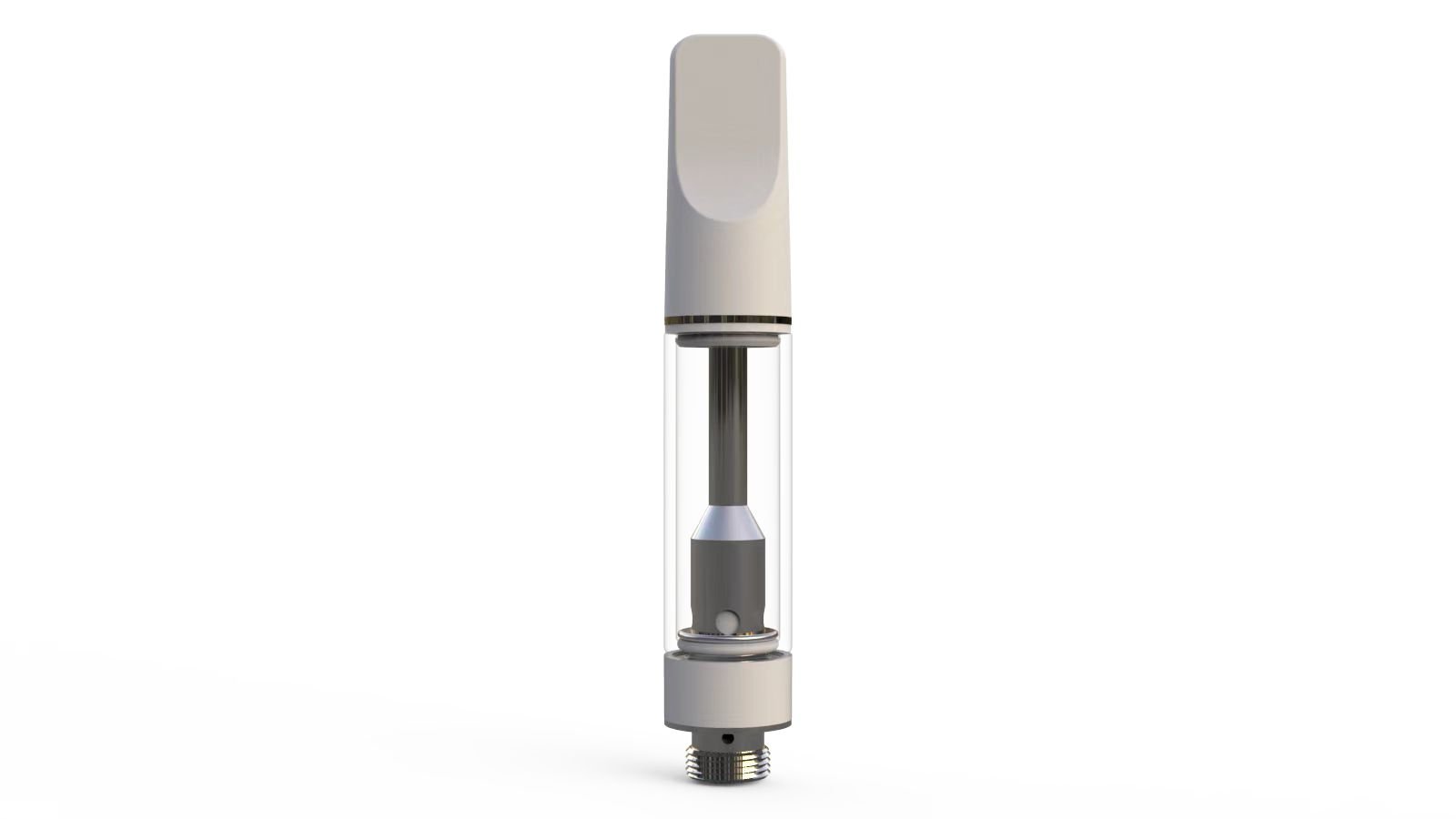

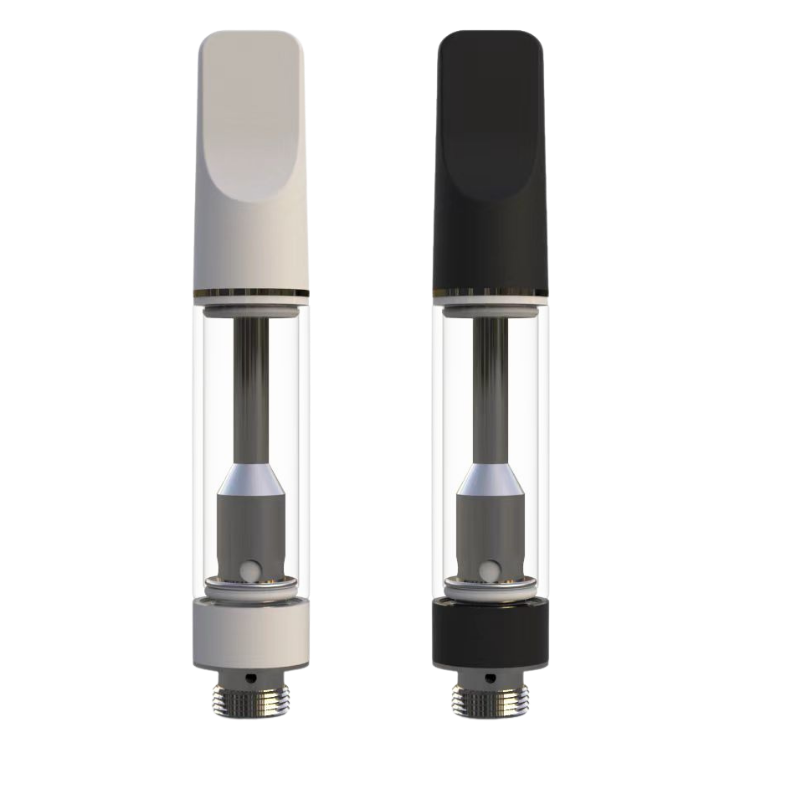

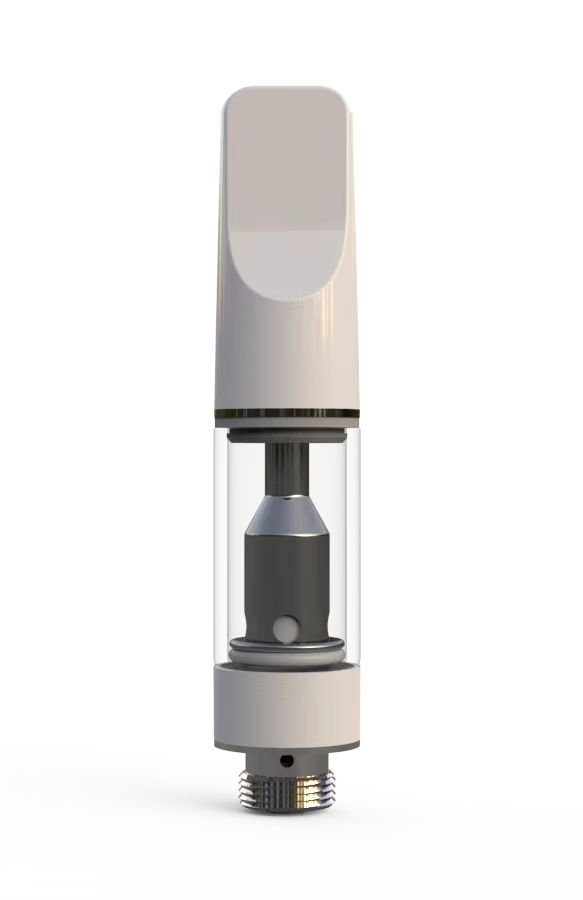

S6-X Medical-Grade SUS316 Central Post 510 Cartridge (0.5ml / 1.0ml)
Engineered specifically for high-viscosity distillates, live resin, and dense botanical oils. Built on a strict heavy-metal safety design baseline, lead-free hardware with an audited defect rate below 0.3%, and full third-party testing support.
Heavy-Metal Safe
Third-Party Lab Ready
The Cost of Inferior Hardware: Eliminate Leaks, Leaching Risks, and Customer Returns
For extractors and brand owners, hardware failure is the fastest route to brand erosion. Standard brass center posts and inferior electroplating frequently corrode under volatile terpene acidity, triggering heavy-metal leaching concerns and unpleasant metallic taints. Furthermore, improper heating core porosity leads to dry hits, burnt flavor, and oil leakage during air transit.
The Sampson S6-X addresses this vulnerability through an uncompromised structural design. Featuring an inert SUS316 surgical-grade stainless steel central chimney and certified lead-free copper base threads, the S6-X creates a clean contact environment that preserves your oil profile exactly as formulated. Built on a strict heavy-metal safety design baseline, it pairs 4 × 2.0mm high-flow oil apertures with a calibrated porous ceramic matrix (1.2Ω), delivering continuous capillary intake even with ultra-dense thick extracts. Sampson actively assists clients by coordinating and submitting production hardware for accredited third-party laboratory testing according to your specific state and regional compliance standards.
SUS316 Medical Steel Post
Corrosion-resistant medical stainless steel core protects against chemical reactions with terpenes, adhering strictly to heavy-metal safety baselines.
4 × 2.0mm Rapid Saturation
Four oversized intake ports guarantee instantaneous wick feeding for live resin, rosin, and high-terpene fractions without pre-heating delays.
Food-Grade Thread Capping
Precision screw-on food-grade mouthpiece minimizes capping labor, making it ideal for automated filling lines or reliable manual assembly.
Engineering Specifications & Benchmarking
Compare how the Sampson S6-X hardware performs across critical manufacturing and safety metrics against standard generic alternatives:
| Parameter / Metric | Sampson S6-X Specification | Generic Market 510 Cartridge |
|---|---|---|
| Central Post Material | Medical-Grade SUS316 Stainless Steel | Plated Brass or SUS304 Standard Steel |
| Heavy-Metal Safety Design | Strict baseline standard; inert SUS316 & clean vapor path | High leaching risk from acidic terpene corrosion |
| Third-Party Lab Verification | Full factory support to submit samples for client testing | Opaque sourcing without testing cooperation |
| 510 Base Thread & Nut | Lead-Free Copper Base Nut & 510 Thread | Standard Leaded Brass Alloy |
| Heating Element & Resistance | Embedded Porous Ceramic Coil (1.2Ω ± 0.1Ω) | Low-Grade Ceramic or Fiber Wire (1.4Ω+) |
| Oil Intake Apertures | 4 × 2.0 mm (CNC Machined High Flow) | 2 × 1.2 mm or 4 × 1.6 mm (Prone to clogging) |
| Reservoir Tank Material | High Borosilicate Heat-Resistant Glass | Standard Commercial Glass or Acrylic |
| Mouthpiece Structure | Screw-on Food-Grade Mouthpiece (Custom Colors Available) | Press-on Plastic (Difficult manual adjustment) |
| Capacity & Net Weight | 0.5ml / 1.0ml Options | 9.5g | Inconsistent Volumetric Calibration |
| External Dimension | Ø10.5 mm (Standard 510 Battery Compatible) | Ø10.5 mm – Ø11.2 mm Variance |
| Factory Audited Defect Rate | < 0.3% (≤ 3 units per 1,000) | 1.5% – 3.0% Industry Average |
Rigorous 4-Stage Factory Inspection Protocol
Every batch of Sampson hardware passes strict metallurgical and functional verifications before leaving our Shenzhen manufacturing facility. Learn more about our complete
Quality Testing Standards.
Heavy-Metal Baseline & Materials Audit
Incoming raw heats of SUS316 stainless steel and copper alloy undergo spectrometry to verify material purity against heavy-metal baselines before machining.
Coil Resistance & Airflow Check
100% automated inspection verifies that each 1.2Ω ceramic core falls within the ±0.1Ω tolerance band and ensures clear internal draw pathways.
-80kPa Flight Vacuum Simulation
Filled test cartridges undergo depressurization in negative pressure chambers, verifying hermetic internal sealing during high-altitude commercial air shipments.
Thermal Cycle Aging Simulation
Sample batches undergo extreme temperature stress (-20°C to 60°C) to verify structural integrity and prevent thermal fracturing of borosilicate glass.
Rapid Dispatch & Custom OEM Capabilities
Sampson provides agile supply chain solutions designed for scaling brands, dispensaries, and wholesale distributors:
- Immediate Evaluation Samples: Unbranded test samples dispatch within 24–48 hours via DHL, FedEx, or UPS Priority Air.
- Flexible OEM MOQ: Custom laser engraving, bespoke mouthpiece colors, and Pantone base hardware available starting from 1,000 units. Explore our
OEM/ODM Customization Services. - Integrated Capping & Packaging: Complete your product line with our tailor-made
Vape Cartridge Packaging and automated filling machine integration. - Direct Logistics: Reliable door-to-door customs coordination and express delivery directly to North American and European destination warehouses.
Scale Your Extract Brand with Factory-Direct Pricing
Eliminate distributor markup and secure certified SUS316 hardware directly from the factory source. Contact our engineering and sales desk directly for custom wholesale tier pricing, CAD specifications, and comprehensive test documentation.
Email: sales@sampsoncarts.com • Shenzhen Sampson Technology Co., Ltd. Baoan, Shenzhen, China
