Description
Heavy-Metal Safety Baseline • Medical SUS316 Alloy • Pure Ceramic Flavor Delivery

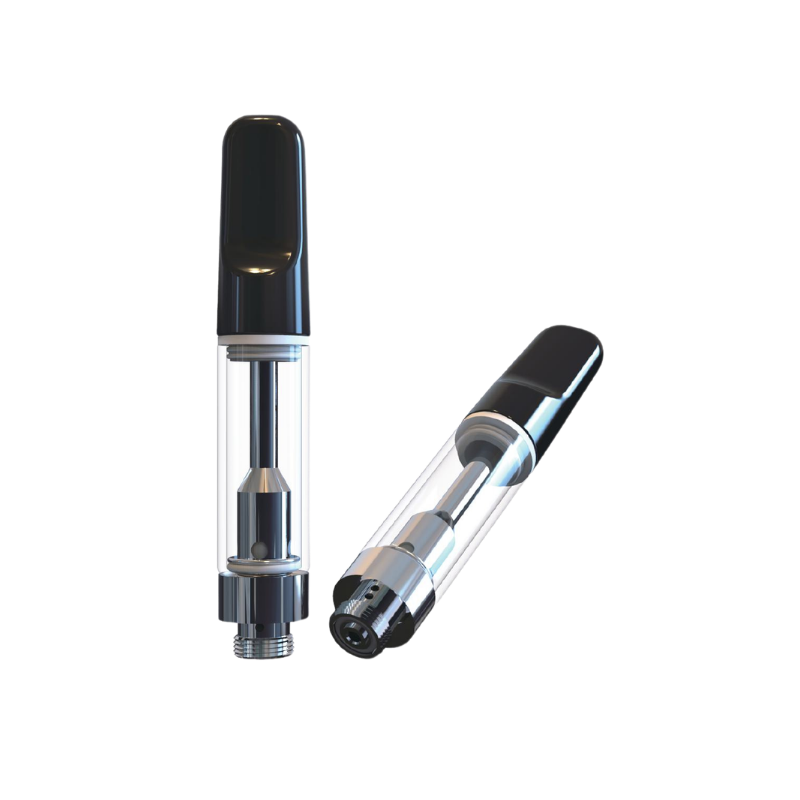

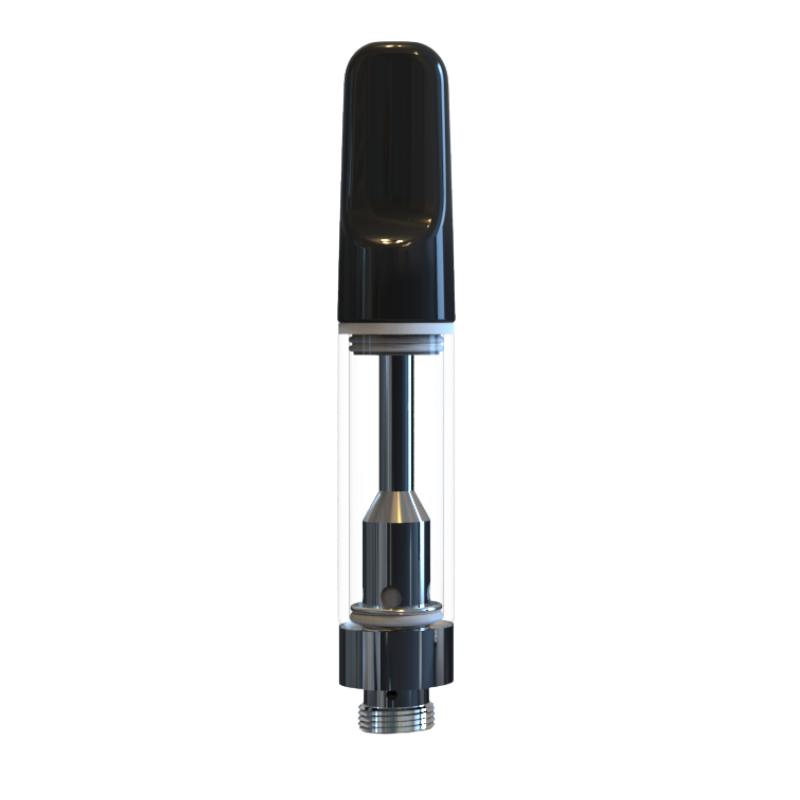

S6-K2 SUS316 Ceramic Tip 510 Cartridge (0.5ml / 1.0ml / 1.5ml)
Engineered for premium live resin, high-terpene extracts, and thick distillates. Built on a strict heavy-metal safety design baseline, zero burning, with an audited factory defect rate below 0.3% and full third-party testing support.
Heavy-Metal Safe
Third-Party Lab Ready
End Heavy-Metal Leaching Concerns, Wick Scorching, and Cartridge Clogging
In highly regulated legal extraction markets, failing mandatory state lab tests due to heavy-metal leaching destroys retail partnerships and brand reputation overnight. Standard brass center posts and inferior electroplating oxidize rapidly when contacting acidic terpene formulations, contaminating premium oils and degrading delicate flavor profiles.
The Sampson S6-K2 is purpose-engineered to address these operational liabilities. Built around an inert SUS316 medical-grade stainless steel central post and lead-free copper base components, the S6-K2 protects pristine extract integrity under a strict heavy-metal safety design baseline. Featuring high-grade biocompatible ceramic mouthpieces (available in both tamper-evident Press-on and reusable Screw-on configurations) and expansive 4 × 2.0mm oil intake apertures, this cartridge ensures continuous wick saturation even for high-viscosity live resin and liquid diamond extracts. Sampson actively assists clients by coordinating and submitting production hardware for accredited third-party laboratory testing according to your specific state and market regulations.

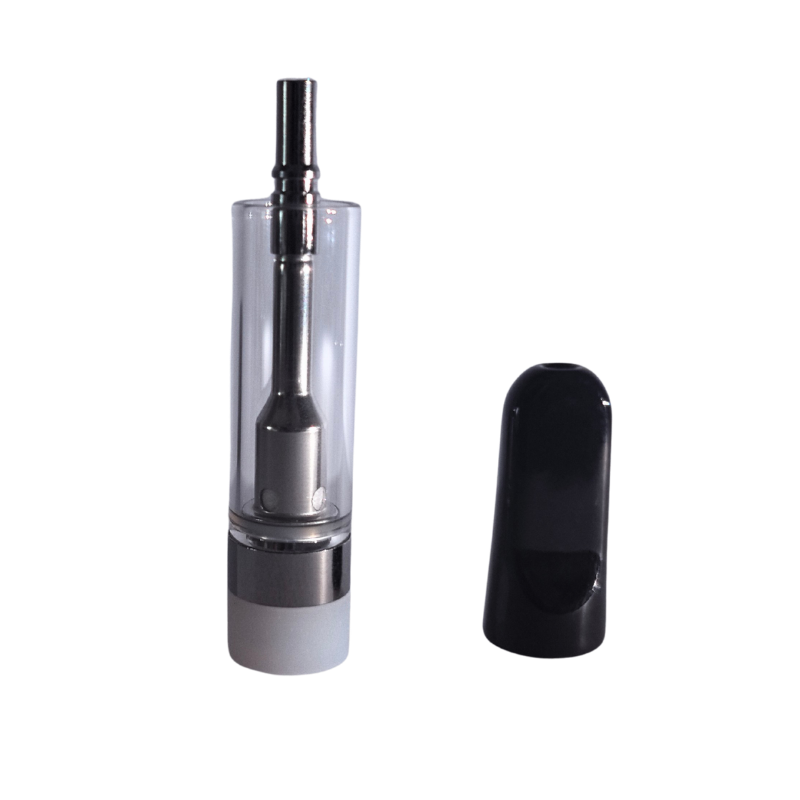

Surgical SUS316 Central Post
Non-corrosive medical stainless steel core protects against chemical reactions with terpenes, adhering strictly to heavy-metal safety baselines.

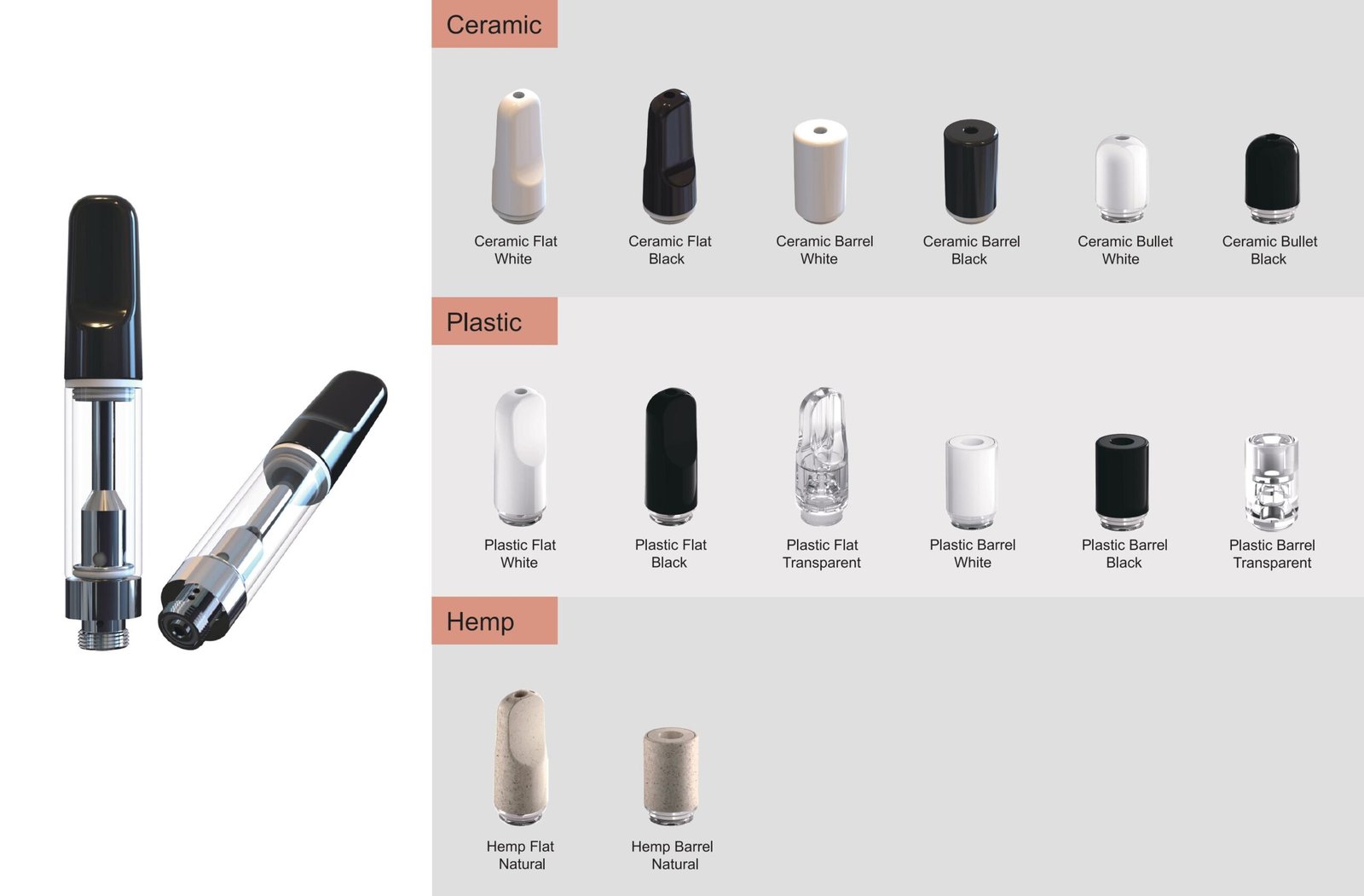

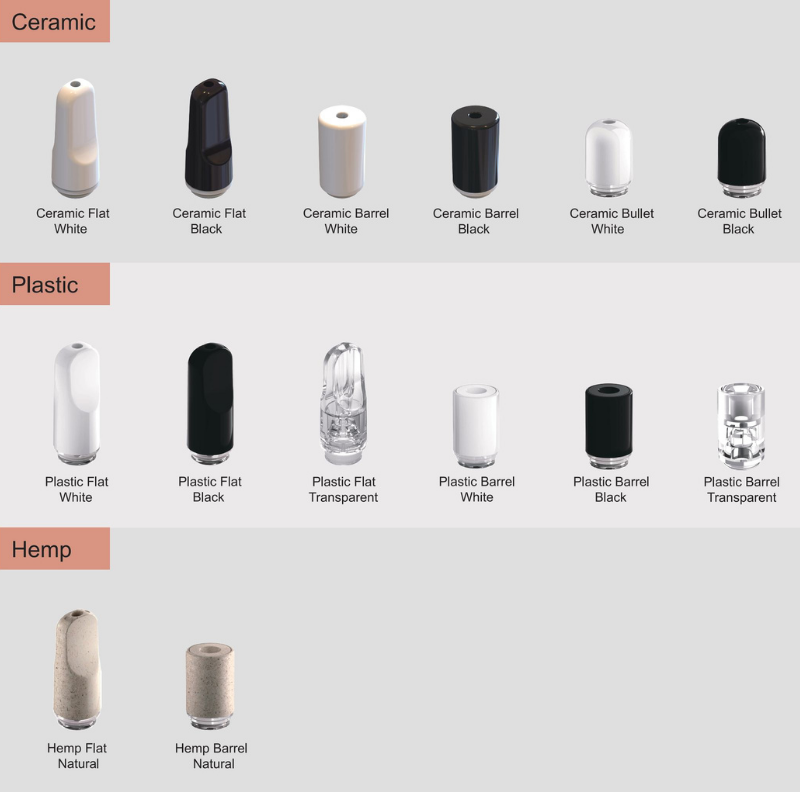

Dual Capping Solutions
Choose one-way snap-in Press-on ceramic tips for tamper-proof compliance, or precision Screw-on ceramic tips for flexible lab filling.
1.5ml Extended Formulation
Beyond conventional 0.5ml and 1.0ml options, our 1.5ml capacity tank captures the growing dispensary demand for high-volume extract retail.
Engineering Specifications & Technical Benchmarking
Review how the Sampson S6-K2 hardware matches and exceeds tier-1 OEM benchmarks:
| Parameter / Metric | Sampson S6-K2 Hardware | Generic Market Alternative |
|---|---|---|
| Central Post Construction | Medical-Grade SUS316 Stainless Steel | Standard Plated Brass or SUS304 |
| Heavy-Metal Safety Design | Strict baseline standard; inert SUS316 & clean vapor path | High leaching risk from acidic terpene corrosion |
| Third-Party Lab Verification | Full factory support to submit samples for client testing | Opaque sourcing without testing cooperation |
| Mouthpiece Architecture | Press-on (One-Way Snap) OR Screw-on Ceramic | Plastic or Plated Metallic Tips |
| Base Thread & Locking Nut | Lead-Free Copper Base Nut & 510 Thread | Commercial Leaded Zinc/Brass Alloy |
| Heating Core & Resistance | Embedded Micro-Porous Ceramic Coil (1.2Ω ± 0.1Ω) | Standard Ceramic (Inconsistent 1.4–1.6Ω) |
| Volumetric Capacity Options | 0.5ml / 1.0ml / 1.5ml High Capacity | Limited to 0.5ml or 1.0ml Only |

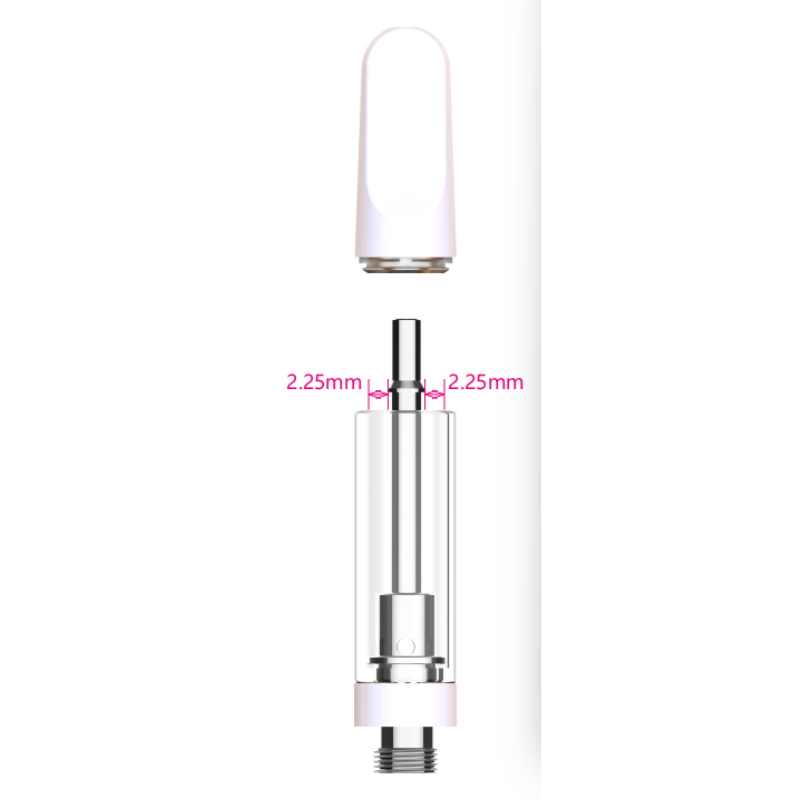

| Aperture Intake Configuration | 4 × 2.0 mm High-Flow Intake Ports | 2 × 1.5 mm (High failure rate on thick oil) |
| Reservoir Glass Housing | High-Grade Borosilicate Glass (Inert) | Standard Commercial Glass / Acrylic |
| Hardware Net Weight & Size | 12.0g | Ø10.5 mm Standard 510 Outer Rim | 8.0g – 10.0g (Thin wall structure) |
| Factory Audited Failure Rate | < 0.3% (≤ 3 units per 1,000) | 1.5% – 3.0% Industry Average |
End-to-End Factory QA Verification Protocol
Every production batch of S6-K2 cartridges undergoes structured laboratory verification at our Shenzhen facility before export dispatch. Learn more about our complete
Quality Testing Protocols.
Heavy-Metal Baseline & Materials Audit
Incoming raw heats of SUS316 steel and lead-free copper base components undergo material assays. We proactively assist and coordinate sending production samples to accredited third-party labs on demand.
Automated Resistance Calibration
100% automated inline checks ensure every 1.2Ω ceramic coil falls strictly within ±0.1Ω, eliminating dry hits and voltage spikes.
-80kPa Flight Vacuum Simulation
Cartridges undergo negative pressure chamber depressurization to verify airtight sealing under high-altitude commercial flight conditions.
Cap Torque & Snap-Fit Stress Test
Both screw-on torque integrity and press-on locking force are verified with mechanical force gauges to ensure flawless automated capping line operation.
Reliable Factory Supply Chain & Private Label Solutions
Sampson empowers licensed brands, MSOs, and bulk distributors with turnkey hardware customization and expedited fulfillment:
- Immediate Evaluation Samples: Unbranded stock units dispatch within 24–48 hours via DHL, FedEx, or UPS Priority Air.
- Custom Finishes & Laser Etching: Bespoke ceramic mouthpiece colors (Black, White, Custom Pantone) and laser-etched logos available from low MOQs. Explore our
OEM/ODM Customization Services. - Full Packaging Compatibility: Pair your hardware seamlessly with child-resistant master boxes via our
Vape Cartridge Packaging Solutions. - Direct Logistics: Reliable door-to-door customs coordination and express delivery directly to North American and European distribution hubs.
Direct Factory Procurement: Maximize Your Gross Margins
Eliminate distributor markup and secure certified SUS316 hardware directly from the factory source. Request our complete wholesale tier pricing, machine-capping CAD drawings, and factory sample kits.
Email: sales@sampsoncarts.com • Shenzhen Sampson Technology Co., Ltd. Baoan, Shenzhen, China
